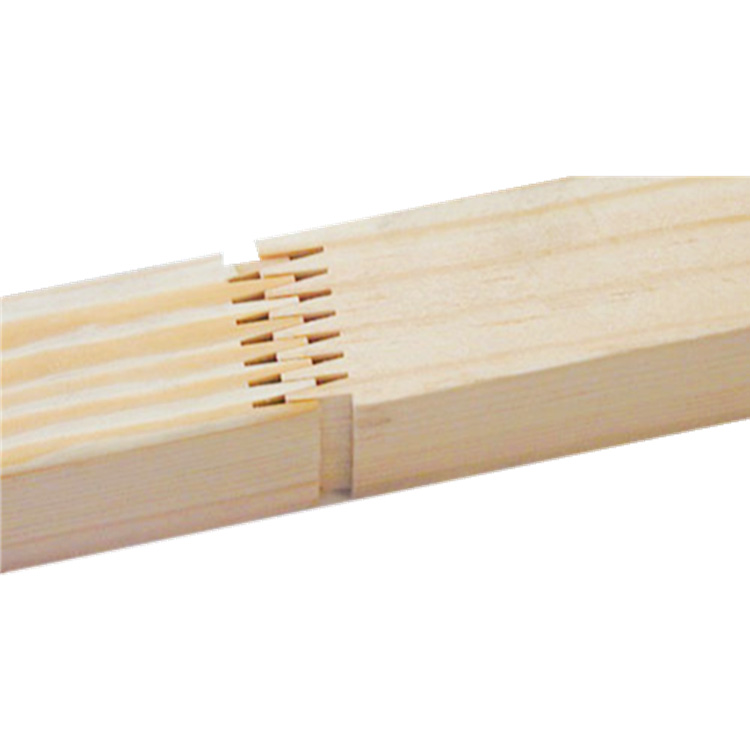

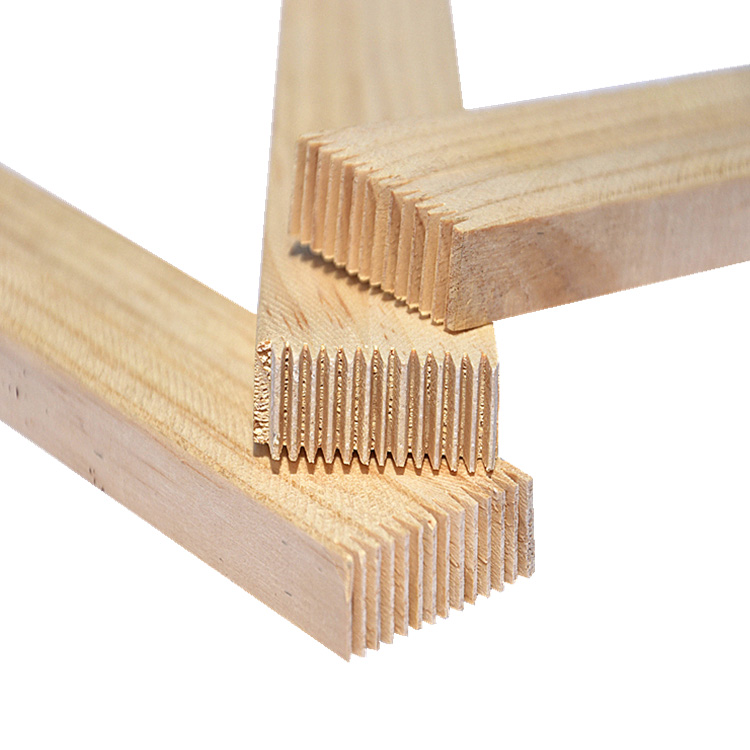

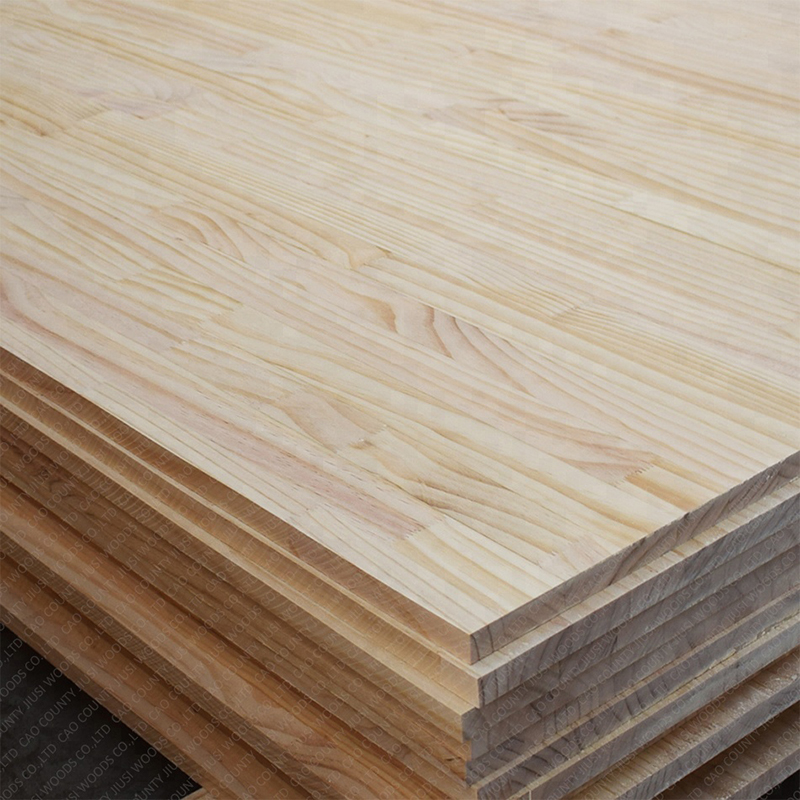

Solid single layer wooden board conformed by pieces of Radiata pine wood reduced longitudinally but assembled by the joint known as finger-joint enabling the wood to reach the length requested by the client. Afterwards, the pieces of wood are connected and glued together edge to edge and or on edge based on an aqueous dispersion-based adhesive of polyvinyl acetate. The manufacturing process is completed by longitudinal cut of the piece to normalized length in addition to the item’s sanding. The international term that used is the acronym SWP (S = solid; W = wood; P = panel).
Appearance :A/A Grade: both faces are clear, free of knots. This is reason why the strip is cut into small pieces to afterwards join them together again along the longitudinal plane: the result is a completely clean board.
Scientific name: Pinus Radiata D. Don
Common name: Radiata Pine, Insignis Pine
Grain: Straight, except for rings close to the pith
Texture: Homogenous and fine
Scent: Slightly sappy
Moisture content: 15 %
Thermal conductivity: 0,104 λ (W/mK)
Nominal density: 480 Kg/m3
Permeability: Retention > 240 kg/m3
Shrinkage coefficient: Volumétrica (14,5 %); Tangencial (7,4 %); Radial (4,2 %)
Durability: Category 3
Domain: Eukaryota
Kingdom: Plantae
Division: Pinophyta
Class: Pinopsida
Order: Pinales
Family: Pinaceae
Genus: Pinus
Species: Radiata
Janka Hardness: 3600 N
Modulus of rupture: 825 Kg/cm²
Modulus of elasticity: 80547 Kg/cm²
Compression resistance: 360 Kg/cm²
Alburnum: White – creamy
Duramen: Light brown
(measurement values are indicated in mm)
Length: 2250 – 2200 – 2440 – 3000
Width: 1220
Thickness: 10 – 12 – 16 – 18 – 22 – 25 – 30 – 40
Consult other measurements
In accordance with The Spanish Association of Standardisation, the edge glued Radiata pine panels are classified as follows:
Regarding the conditions in which it is utilized: SWP (1= dry )
Regarding its mechanical properties: SWP 1 NS (NS= non- structural, non-structural application)
Cutting: Easy
Drying: Fast
Planing: Easy
Gluing: Easy
Nailing and screwing: Easy
Our experience with Radiata pine and finger-joint panels made of this raw material allows us to know the possible modifications or damage that the product might suffer in the event that a series of recommendations regarding basic conservation and storage were not taken into consideration to preserve its durability and stability.
In wanting to avoid warping of the panel or edging of the strips that are at the edges we suggest the following recommendations:
